LuxSmart Premium Preloaded Intraocular Lens

For your daily range of vision

  • Fully Preloaded Acrylic Hydrophobic IOL
  • Asphericity modulation design with the combination of 4th and 6th orders of spherical aberration of opposite signs
  • ≥ 2.2 mm incision (please refer to the loading guide)
  • Preloaded system – Single use injector

Indications & approvals may vary by country. Please contact your local representative for further information.

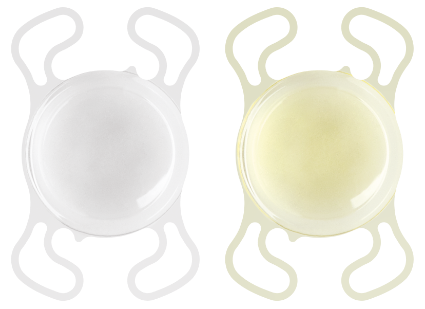

LuxSmart™-lenses
LuxSmart™-violet-filter-pack
LuxSmart™-crystal-pack

Optical concept

PURE REFRACTIVE OPTICS (PRO) Technology

With no diffractive optical profile; the IOL* has a refractive surface across the entire optical diameter

LuxSmart™-optical-concept-mobile

ELONGATED FOCUS CENTER

2 mm center with combination of 4th and 6th orders of spherical aberration of opposite signs

PERIPHERY

Refractive aspheric surface

PATENTED TRANSITION ZONE

Transition zone designed to smoothly decrease the optic vergence from the center to the periphery

Transition designed to take part of the 4th and 6th orders of spherical aberration management

Transition designed to control the trajectory of light rays to ensure no light is outside the range of vision (no light loss)

LuxSmart™-optical-concept-desktop

Refractive aspheric surface

2 mm center with combination of 4th and 6th orders of spherical aberration of opposite signs

Transition zone designed to smoothly decrease the optic vergence from the center to the periphery

Transition designed to take part of the 4th and 6th orders of spherical aberration management

Transition designed to control the trajectory of light rays to ensure no light is outside the range of vision (no light loss)

Product Information

MATERIAL

DELIVERY SYSTEM

LuxSmart™-single-step-fully-preloaded-injection

CONSTANTS*

OPTICAL CONSTANT
SRK/T A constant: 118.5
Hoffer Q pACD: 5.23
Holladay I Surgeon factor: 1.48
Haigis: a0: 1.045 / a1: 0.4 / a2: 0.1
EVO A constant: 118.5
Barret A constant: 118.4 / Lens Factor: 1.57
Hill-RBF A constant: 118.32
* Constants are estimates only. It is recommended that each surgeon develops their own values.

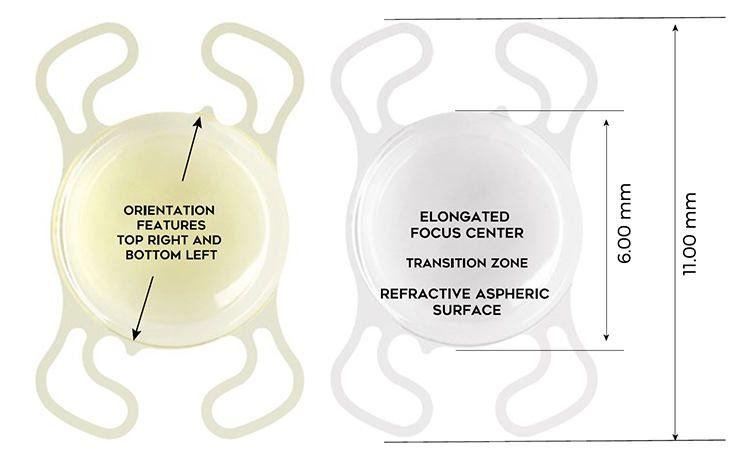

LuxSmart™-optical-constants

A Surgeon’s Perspective

LuxSmart™ implantation video with VICTUS™ femtosecond laser platform cataract surgery. Courtesy of Dr. Stodulka, Czech Republic

LuxSmart™ implantation video. Courtesy of Dr. Hörster, Germany

ADDITIONAL PRODUCT INFORMATION
